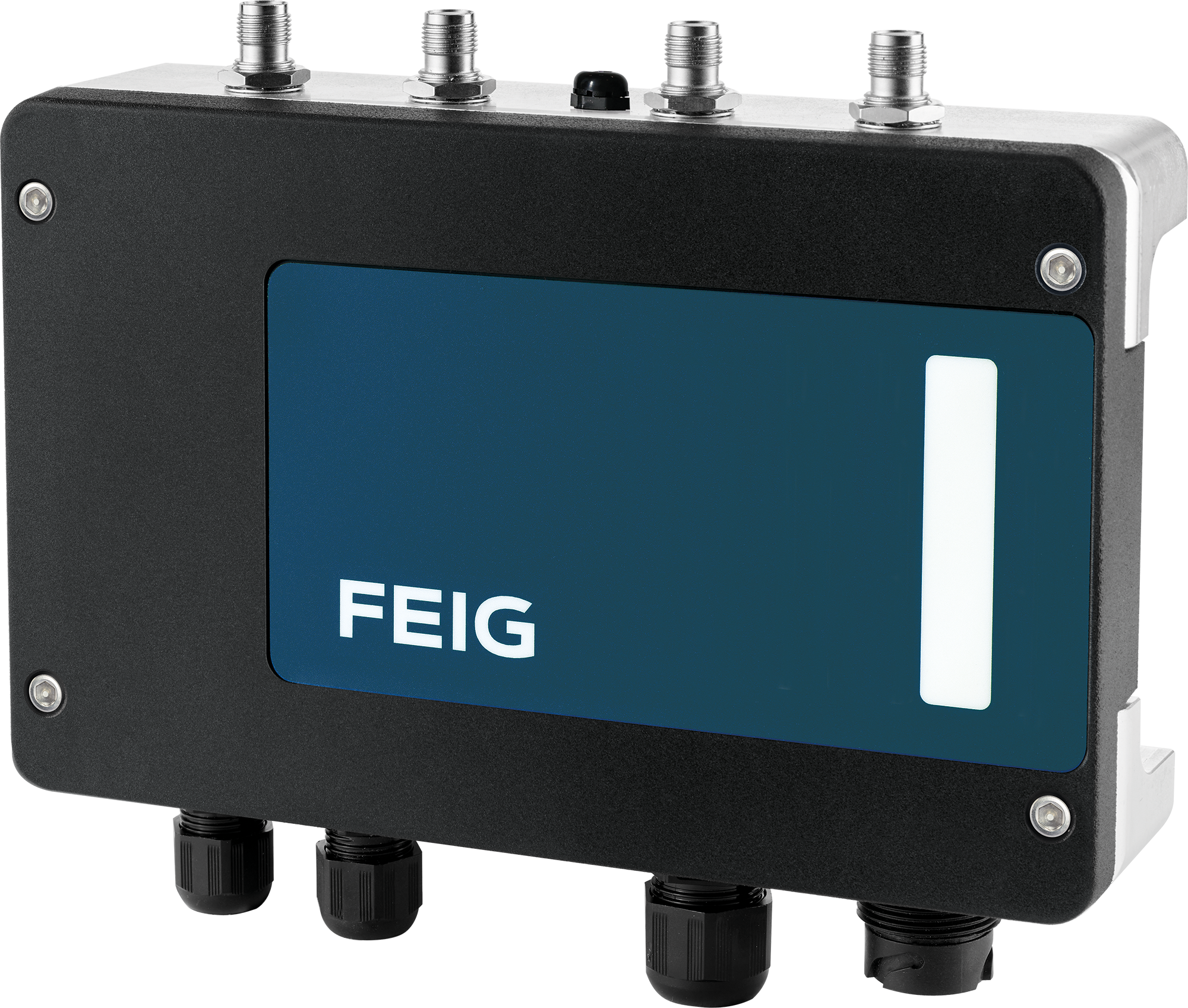

Good arguments for ID LRU4000

Icon Stern

Robust metal housing

Icon Stern

For indoor & outdoor (IP65 / IP67)

Icon Stern

4 antenna outputs (internal multiplexer)

Icon Stern

Edge Computing Device

Product description
Technical specifications
Downloads
Product description

For identification of UHF transponders (860-960 MHz)

  • Dimensions: 225 x 190 x 55 mm, with connectors
  • Connection of up to 4 antennas
  • Interfaces: RS485, Ethernet, USB
  • Power supply: 12V – 24V DC +/- 10%
  • Supported transponders: EPC C1G2, ISO 18000-63, ISO/IEC 29167

Fields of application

  • Industrial
  • Logistics

Features

  • Robust housing with cable glands & plug-in terminals
  • Designed for applications in harsh environments (indoor & outdoor) (IP65/IP67)
  • 2 Watt output power
  • 4 antenna ports (internal Multiplexer)
  • 2 Inputs / 4 Outputs
  • Edge Computing Device
Technical specifications
Dimensions (w x h x d)
approx. 225 mm x 190 mm x 55 mm, with connectors
Weight
approx. 1200 g
Housing
Aluminium housing, plastic cover
Color
Aluminium, anthracite (cover)
Protection class
IP65, IP67
Power supply
12 V - 24 V DC ± 10 %, Power-over Ethernet (PoE+)
Power consumption
max. 18 W
Output power
100 mW to max. 2 W configurable in steps of 100 mW
Downloads

Applications for ID LRU4000

Logistics

Production
